RF 3.01 Construction

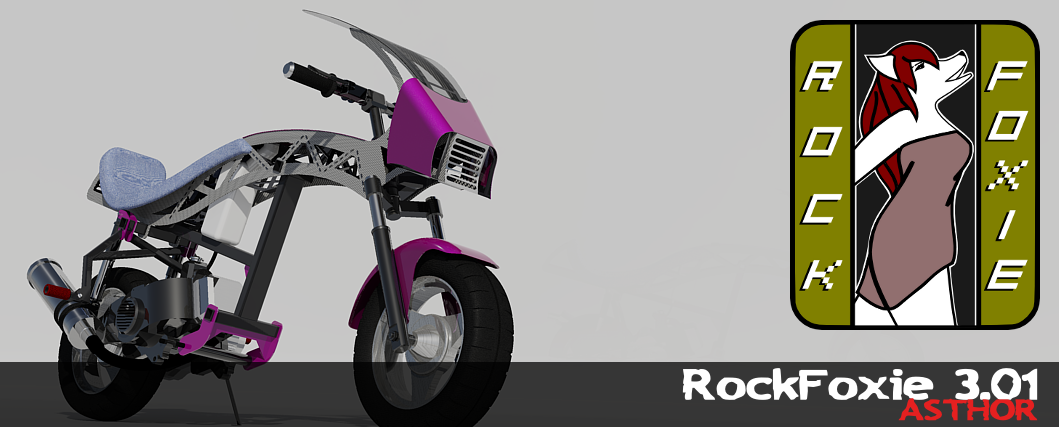

The main feature of RF 3.01 is its backbone frame. Continuing the RockFoxie traditions we made it structural, combined of steel sheet and steel tubes. Hatching is just decoration, no carbon will be used.

RockFoxie 3.01

In collaboration with Asthor Motorcycles RockFoxie presents new (third) model!

RockFoxie-Asthor 3 is 50cc racing scooter with back-bone steel frame and hi-end tuning & racing components from the leaders of industry. RockFoxie is mostly aimed at STAGE6 components giving greatest output and quality.

RockFoxie 2.03

RockFoxie 2.03 appeared as the result of 100% remaking of 2.02. The only details coming from previous version are front lights and 2108 knuckles. The main purposes of remodeling are: SIMPLIFICATION, REALISM & EFFEMINATION. We're close to production now - the model to be converted to technical drawings soon.

RF 2.02 Aerodynamics

Virtual wind tunnel Autodesk Falcon allowed us to study aerodynamic characteristics of RockFoxie 2.02 prototype. Image below demonstrates the 1 hour 46 minutes blow-through result (0.81 second of process time). The flow speed is 56.6 m/s (200km/h) along the lengthwise axis of vehicle.

RockFoxie 0.70

RockFoxie 0.70 TRIF - is a closed cabin scooter-tricycle built on base of standard scooter's engine+variator block and front-forks.

Idea

Russian rules of the road allowed to ride 50сс scooters and mopeds with 2 or 3 wheels below 450kg of mass & 50km/h max speed without registration and driving license until 2013. We were wishing to use the possibility to create upgraded scooter to be used up all the year including winter conditions. So we had such requirements as:

3 wheels according the reversed trike scheme

closed cabin

suspension, engine & transmission of standard 50cc scooter

Taking this points as the base we started projection

RF 2.02 Construction

RockFoxie could be characterized by simple decisions and usage of standard spare parts and details. Here we show general construction elements affecting the look of the car.

RF 2.02 Design

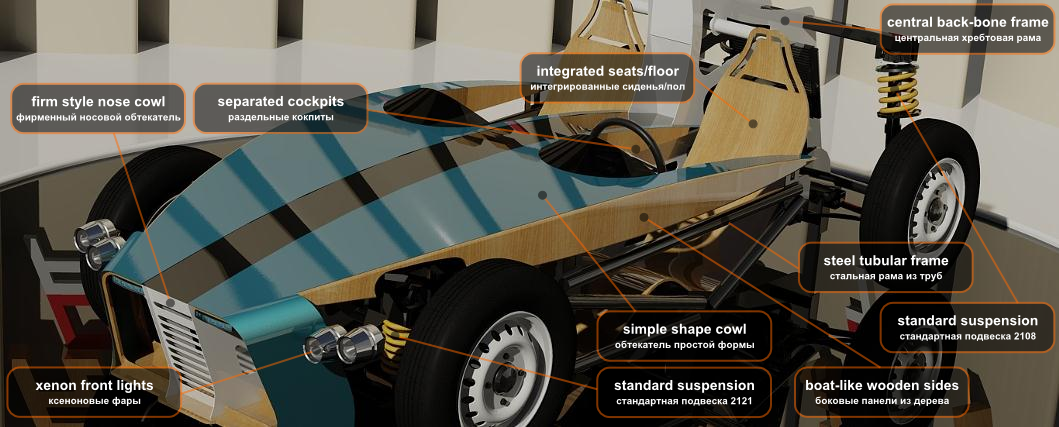

RockFoxie 2.02 idea is based on these general principles:

Open projection

Simple shapes

Manufacturability

Standard spare parts

Design is following the same principles. Graphically 2.02 continues the idea set in 3d sketch 2.01 but with greater detalization and more specified dimensions and forms of standard parts.
